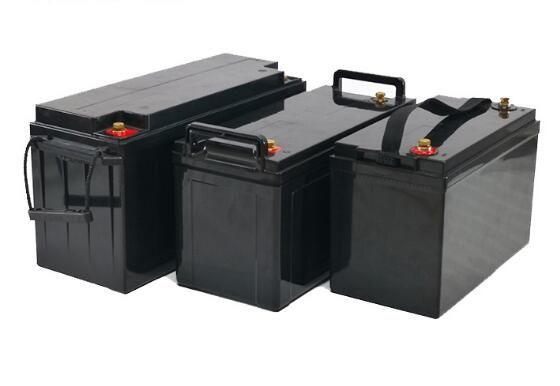

Bluetooth monitoring 12V 150Ah Lithium Iron Phosphate RV Batteries
Lithium Iron Phosphate Battery 12.8V 150Ah
Nominal Voltage 12.8V
Nominal Capacity 150 Ah
Capacity @ 30A 300 min
Energy 1920 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
| ELECTRICAL SPECIFICATIONS | | MECHANICAL SPECIFICATIONS |
| Nominal Voltage | 12.8V | | Terminal Type | M8 |
| Nominal Capacity | 150Ah | | Weight | 19kg |
| Nominal Energy | 1920Wh | | Case Dimension(L*W*H) | 480*170*240mm |
| Internal Resistance | ≤30 @50% SOC | | Case Type | ABS |
| Capacity | @30A: 300minutes(5hours) | | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | | LCD or Bluetooth Function | Optional |
| Maximum In Series | 4PCS | | BMS:low voltage,high voltage,over temperature, |
| Maximum In Parallel | No limit | | Over current,short-circuit protection .etc |
| Discharge Current and Voltage Specifications | | Charge Current and Voltage Specifications |
| MAX Continuous Discharge Current | 150A | | Max Charge Current | 150A |
| Peak Current | 500A | | Recommended Charge Current | 30A - 75A |
| Discharge pulse current | 700±50A (31±10ms) | | End of Charge voltage | 14.4V±0.2V |
| BMS Low Voltge Cut-off | 10V | | End of discharge voltage | 10V |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | | COMPLIANCE SPECIFICATIONS |
| Discharge Temperature | -20～+65℃ | | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | | UL1642 & IEC62133 & BIS for cells |
| Storage Temperature Range | -20～+45℃ | |
| BMS High Temperature Protection | 90℃ | | Shipping classification | UN 3480 |
| Battery High Temperature Protection | 60℃ | | |
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. express., Airline and sea shipping.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
